Car Head Rest Production Line

Technical Data
PU machine High pressure machine, 2 comp. mixhead DHV 1014-2K system
Production method Stop & Go moving type by turn table
Product Foam in cover head rest
PU injection Automatic pouring into close mould by manipulator
Mould carrier type Open and close by guide steel bar
Auto. locking & unlocking by air unit
Mould carrier 10-~16 carriers
Turn table size Approx. 3.25m(D) x 2m(H)
Mixhead cleaning unit Hot water or DOP cleaning by brush turning
The shot cycle time Approx. 10 sec
Curing time Approx. 60 sec
Mould Heating Water heating by boiler
Head rest weight Approx. Min 150g~ Max 350g
The required worker 1~2 people
Yearly production capa 1 day - 8 hr x 60 min x 60 sec ÷ 10초 = 2,880 pcs
1 month - 2880 x 25 days = 72,000 pcs
1 year - 72000 x 300 days = 17,280,000 pcs

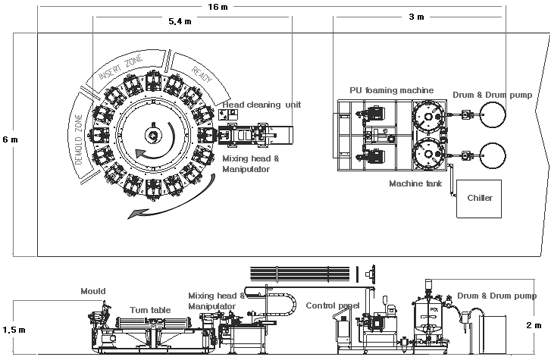

The Consist of Head Rest Line
  • High pressure PU foaming machine, 2comp. & Mixing Head DHV 1014-2K
  • Turn table and moulds
  • Manipulator with mixhead cleaning unit
  • Mould heating by Boiler
  • Mould open & close by steel guide bar
  • Electric control

Photos for PU Car Parts
