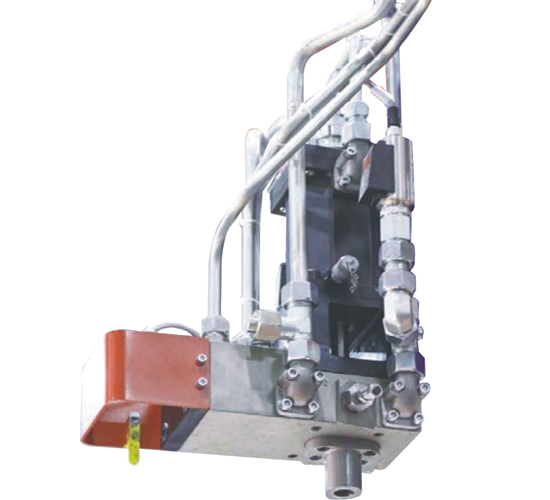

L-Type Mix Head (DHV)
Click for Details

L-Type Mixheads

Precision Components and Reliability

PPMPL mix heads incorporate unique alloys, precision machining, and specialized surface treatment of critical components. As a result, PPMPL mix heads offer uncompromising accuracy and reliability.

Mix Head Warranties

Each PPMLP mix head warranty is based upon the systems that will be ran in the mix head and mix head material selection. Warranties range from 30,000 shots for highly abrasive systems up to 1,000,000 shots depending upon the application.

Shot Counter

The shot-counter is unique to PPMPL mixheads and provides a method to identify when a mix head is due for preventive maintenance.

L-Head Technology

PPMPL L-type mix heads are available in both patented 120° impingement and 180° impingement models for superior mixing, laminar flow, and splash free pouring.

This design features two mixing chambers perpendicular to each other in an “L” shape. The material components counter impinge in a small horizontal chamber and are forced into a larger chamber from where they exit. The 90° change in direction results in further component mixing and slows the material velocity, resulting in a laminar discharge.

Self-Cleaning

Both mixing chambers are equipped with hydraulically operated plungers.

Material Recirculation

Grooves in the control plunger allow material recirculation and conditioning when the mix head is closed. Conditioning the material ensures uniform ratios and component temperature when the mix head is ready to pour.

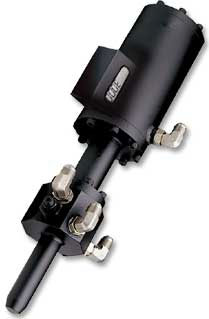

Straight Mixhead (DHS)
Click for Details

High Pressure Straight Mixhead

Precision Components and Reliability

PPMPL mixheads incorporate unique alloys, precision machining, and specialized surface treatment of critical components. As a result, PPMPL mixheads offer uncompromising accuracy and reliability.

Mixhead Warranties

Each PPMPL mixhead warranty is based upon the systems that will be ran in the mixhead and mixhead material selection. Warranties range from 30,000 shots for highly abrasive systems up to 1,000,000 shots depending upon the application.

Self-Cleaning

The control plunger evacuates all material from the mixing chamber as the mixhead closes. Precision tolerances between the control plunger and housing ensure that material does not build-up and impact the mix head’s performance.

Multi-Component Capabilities

PPMPL offers standard 2 and 3-stream straight-type mixheads. Custom mixheads with 4 or more components are available.

Controlled Orifices

All PPMPL mixheads can be fitted with air adjustable orifices that allow for on-the-fly changes in ratios, densities, and component streams.
