Explore our complete range of high-pressure Reaction Injection Molding (RIM) units, low-pressure foam dispensers, mobile spray proportioners, mixing heads, hydraulic daylight presses, and automated material handling systems.
Advanced Reaction Injection Molding (RIM) technology for molded automotive components, toys, PU panels, and sporting equipment in a compact, economical package.
High-throughput polyurethane foam machine engineered for medium-to-large molds, refrigeration panels, and automotive seating with automated PLC process control.
Heavy-duty high-pressure machine designed for continuous sandwich panel lines, large commercial refrigeration cabinets, and pipe insulation jacketing.
Compact PUR mixing and dispensing unit for economic, ecological production of air/oil filter seals, control cabinets, lighting fixtures, and electrical connector gaskets.
Modular, low-maintenance dispensing machines with environmentally friendly hot-water flush or solvent rinse, precision metering gear pumps, and variable speed mixers.
Cost-effective, air-driven mobile proportioner for spraying polyurethane foam in residential insulation, cavity fill, rim and band joists, and light industrial manufacturing.
Lightweight, compact electric/hydraulic proportioner package with heated hose assembly, PPM spray gun, and material transfer package for commercial insulation contractors.
Strong performance in a reliable hydraulic system. Designed for high volume polyurethane & polyurea applications: large commercial roofs, wastewater treatment, pipe coatings, and tanks.
High-pressure L-type mix heads with double piston design for laminar, splash-free flow in closed and open molds. Specialized surface treatments ensure extreme abrasion resistance.

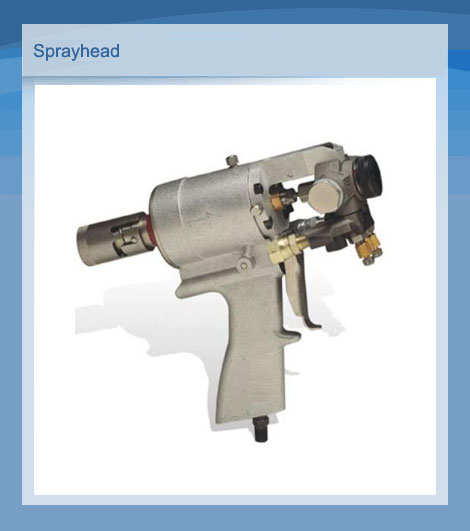

PMS-12, PMS-20, PMS-25 straight injection mix heads and PPM lightweight mobile spray guns for cavity filling, in-situ foam pouring, and surface insulation coatings.
Trade-mark Polycraftpuf hydraulic press system with motorized platen tilting, pneumatic carriage ejection, and precision heating for sandwich panels and automotive mouldings.
Two daylights with four motorized shuttle tables. While one batch cures under hydraulic clamp, the operator demolds and prepares the alternating tables, doubling productivity.
High-volume sandwich panel pressing systems derived from standard hydraulic concepts, adapted to accept multiple overlapping daylight platens for massive output.
Smooth, continuous or high-accuracy indexing motion for “pour-on-the-fly” or stop-and-go molding of automotive headrests, steering wheels, and air filter gaskets.
Complete automated raw material storage system for Polyol, Isocyanate, and Blowing Agents. Includes suction headers, circulation pumps, nitrogen blanketing, and thermal jacket regulation.

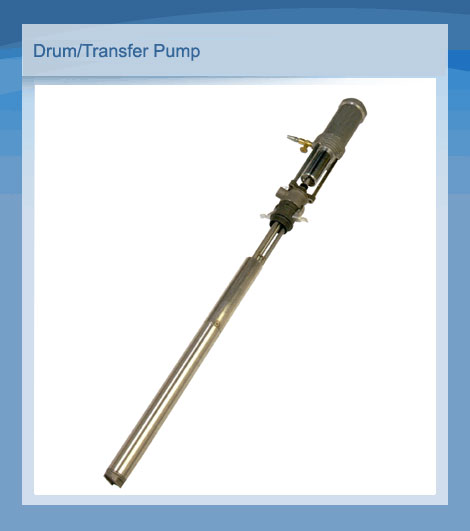

Pneumatic 2:1 ratio air-motor drum transfer pumps with all stainless steel wetted parts, Teflon packings and O-rings, ground lugs, and dry air breather for 200L chemical barrels.
Specialized low-pressure dispensing units for single-density and dual-density polyurethane shoe soles, slippers, and safety footwear with 180° swing boom and rotary conveyor.
High-pressure axial piston pumps for the precision metering of polyol and isocyanate. Superior metering accuracy, high repeatability, and manual or electronic rotary displacement control.
Precision edge-gap filtration elements designed specifically for viscous polyol, isocyanate, and prepolymers. Cleans without interrupting production via manual or motorized scrapers.
Detailed engineering parameters for low pressure and high pressure machine series.
| Model | Ratio A:B | Variation Range | Output Min (kg/min) | Output Max (kg/min) | Tank Cap. (each) | Power (kW) | Weight (kg) | Dimensions (mm) |
|---|---|---|---|---|---|---|---|---|
| LP 15 | 1:1 | 1:5 to 5:1 | 1.5 kg/min | 15.0 kg/min | 50 Liters | 7.5 kW | 575 kg | 3300 × 3000 × 1100 |
| LP 30 | 1:1 | 1:5 to 5:1 | 3.0 kg/min | 30.0 kg/min | 100 Liters | 10.0 kW | 650 kg | 3700 × 3000 × 1500 |
| LP 60 | 1:1 | 1:5 to 5:1 | 6.0 kg/min | 60.0 kg/min | 250 Liters | 18.5 kW | 1100 kg | 4200 × 3200 × 1800 |
| LP 100 | 1:1 | 1:5 to 5:1 | 10.0 kg/min | 100.0 kg/min | 250 Liters | 22.0 kW | 1200 kg | 4500 × 3200 × 1800 |
| Model | Closed Mold Output (1:1 Ratio) | Closed Mold Output (2:1 Ratio) | Closed Mold Output (3:1 Ratio) | Open Mold Output (g/sec) |
|---|---|---|---|---|
| PMLV 0812 | 50 ~ 430 g/sec | 60 ~ 330 g/sec | 70 ~ 290 g/sec | 50 ~ 200 g/sec |
| PMLV 1014 | 100 ~ 720 g/sec | 100 ~ 620 g/sec | 110 ~ 540 g/sec | 80 ~ 500 g/sec |
| PMLV 1218 | 130 ~ 1000 g/sec | 130 ~ 900 g/sec | 150 ~ 780 g/sec | 130 ~ 500 g/sec |
| PMLV 1625 | 300 ~ 1600 g/sec | 330 ~ 1200 g/sec | 370 ~ 1060 g/sec | 400 ~ 1000 g/sec |
