POLYMAMIX SERIES
High Pressure Unit

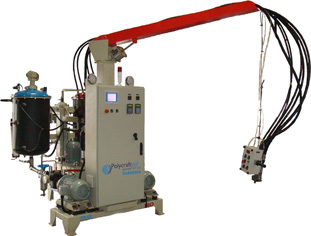

POLYMAMIX 20 - 40

POLYMAMIX 60 - 80

POLYMAMIX 200



Advanced Technology in an Affordable Package and a configurable platform let you select any application.

A standardized design and the simple layout of the POLYMAMIX enables Polycraft-puf Machine to build a custom machine while meeting the requirements of each application. Outputs are available for various ranging. Ratio’s range from 1:5 to a 5:1.
Standard features include 170 Lit. rated day tanks, strainers, axial piston pumps, and low-pressure circulation. Each machine can be equipped with either a straight type or an L-type mix head.
Specially engineered to produce molded products such as toys, PU panel and sporting equipment, the POLYMAMIX provides advanced Reaction Injection Molding technology in a compact, economical package.
Advantages
  • Economical price
  • Simple Operation
  • Easy to maintain
  • Time proven components
  • Low Initial Investment
  • Leading Technology
  • Low Operating Costs
Technical Specifications
Model
Ratio
A:B
Ratio Variation
A:B
Output
Kg./min.
Motor's
speed
Tank Cap.
[each]
Power/kw.
[without chiller]
min
max
Iso
Poly
PM 40
1:1
1:5 / 5:1
4
36
12cc
12cc
170 Lit.
18 Kw.
