Low, High speed technology for processing PU insole & outsole for Sports shoes - Shoes & Safety shoes sandals and other soles

PPMPL is a professional manufacture of PU pouring machine in india for producing PU insoles and outsoles for sport shoes, safety shoes, sandals.

With FIRST- RATE EXPERIENCE IN PU field, we are capable to settle all problems that customers would meet, such as production technique, production process management, affiliated devices and raw material.

Our Polyurethane form machine with moulds carrier line can produce all kinds of polyurethane soles with two components / three components and single density & dual density, also can produce higher class safety shoes.

PU SHOE SOLE PLANT TYPES

BANANA

The simplest unit for the production of polyurethane soles/ shoes consists basically of two elements. A low pressure open pouring dispensing unit the mixer of which is attached at the end of a boom which can be moved from mould to mould by the operator and moulds carrier bracket are arranged in a semicircle. The moulds openings are cloud are done by the operator.

The numbers of moulds this plant can accommodate from 24 to 30Nos. the hourly output range lies between 120 to 150 pairs (240 to 300 pieces) minimum, depending on the model. Single layer soles as well as shoes can be manufactured. Because of their simplicity, those plants are the cheapest of the range of PU shoes sole plants.

RATIO (changeable)	1:5 to 5:1
JACKETED DAY TANKS	200 Kg.
SOLVENT TANK (S.S)	20 Kg.
BOOM	@ 180 Deg. Swing
CONTROL	PLC with color animated Touch Panel
MACHINE POWER	10 KW
NUMBER OF STATION	24 & 30 Molds Carrier
CONVEYOR POWER	24 KW.
HEATING SYSTEM	Individual Mold Heating















OVAL

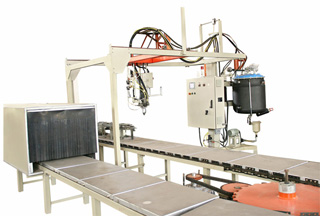

The mixing head is X-Y manipulated type which automatically pours to the open mould. The pouring sequence starts and stops can set as either automatic or manual and the mould closes. Up to 210 pairs of soles (minimum), in one hour with a demould time of 3 minutes, in 44 station can be produced, depending on the machine type. The metering pumps are of high precision, and the polyol to isocyanate ration are digitally controlled as shoes can be manufactured. Because of their simplicity, those plants are the cheapest of the range of PU shoe sole plants.
